L1212 — UV LED Flood Curing Lamp, 12″ × 12″ Irradiation Area
Incure L1212 brings the L-Series™ to the 12-inch PCB panel format — a standard substrate dimension in electronics and power device manufacturing. It delivers 44% more curing area than the L1010 (144 sq. in. vs. 100 sq. in.) with the same RS232 automation interface and C191C chamber compatibility. For processes that overhang the 10-inch boundary, the L1212 is the direct scale-up: one exposure, the full panel, no repositioning.
44% More Curing Area Than the L1010 — Reaches the 12-Inch Panel Format
The L1212 steps from 100 sq. in. (L1010) to 144 sq. in. without a change in control architecture. RS232, C191C chamber compatibility, LCD front panel, foot-switch, and PLC I/O carry forward unchanged. The upgrade path from L1010 to L1212 is a lamp swap — no reconfiguration of the automation or chamber integration required.
One Pass Cures an Entire 12-Inch PCB Panel
12″ × 12″ matches the full-panel format used in mid-volume and high-volume PCB production, power module assembly, and large-format conformal coating. A single uninterrupted L1212 exposure eliminates the two-pass overlap patterns that arise when an L1010 is used on panels that extend into the 10-to-12-inch range. No dose variation at seam lines, no fixture repositioning between passes.
1,900 mW/cm² Across a 12″ × 12″ Area (1,296 LEDs at 385/395/405 nm)
1,296-LED array; peak irradiance at 2″ working distance: 1,900 mW/cm² at 385 nm, 395 nm, or 405 nm; 1,600 mW/cm² at 365 nm. Static uniformity 0.78 at 2.0″. Wavelength factory-configured at order (365 / 385 / 395 / 405 nm); LED life rated at greater than 20,000 hours.
| UV Output | |
| Model | L1212 |
| Irradiation Area | 12″ × 12″ (305 mm × 305 mm) |
| LED Array | 1,296 LEDs |
| Peak Intensity @ 2″ — 365 nm | 1,600 mW/cm² |
| Peak Intensity @ 2″ — 385/395/405 nm | 1,900 mW/cm² |
| Recommended Curing Distance | 1″ – 3″ |
| Static Uniformity @ 2.0″ | 0.78 |
| Static Uniformity @ 3.0″ | 0.62 |
| Control & Operation | |
| Available Wavelengths | 365 nm / 385 nm / 395 nm / 405 nm (factory-configured at order) |
| Operating Modes | Timer & Continuous (Front-Panel Switchable) |

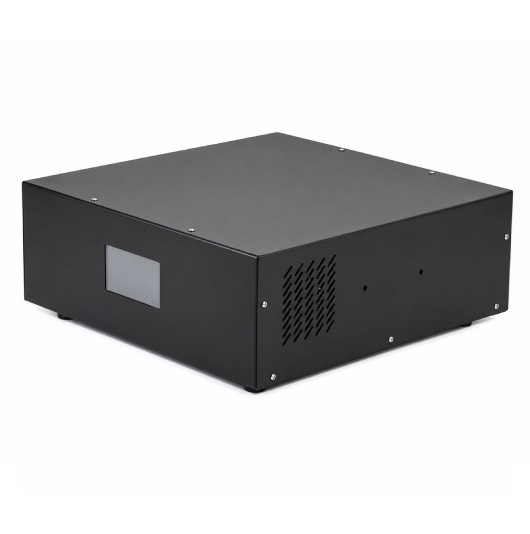

| Control Interface | LCD Front Panel; Foot-Switch Input; PLC Digital I/O; RS232 |
| Power & Cooling | |
| Power Input | 100 – 240 V, 50/60 Hz (auto-ranging) |
| Cooling | Forced-Air, Louvers |
| Compatibility & Durability | |
| Chamber Compatible | Incure C191C |
| LED Lifespan | > 20,000 hours |
| Ordering | |
| P/N Format | L1212-[Wavelength] |
| Wavelength Code | 365 / 385 / 395 / 405 |
| Example P/N | L1212-365 |
Irradiance values measured at 100% output intensity at the specified working distance. Peak intensity at 385/395/405 nm configurations exceeds 365 nm output for the L1212 array — this is a characteristic of the LED die efficiency at these wavelengths. Static uniformity measured as minimum/maximum intensity ratio across the irradiation area. LED lifespan rated at greater than 20,000 operating hours under standard conditions; no recalibration or bulb replacement required during normal service life.
