UV resin turns from liquid to solid in minutes, but only under a light that matches how the resin is formulated. Picking a lamp by wattage alone is why many resin projects come out tacky, cloudy, or weak.
How UV Curing Works
Traditional two-part epoxy cures through a chemical reaction between resin and hardener that runs for hours. UV resin is different: it contains photoinitiators that absorb ultraviolet energy and trigger rapid photopolymerization, hardening the resin in seconds to minutes.
That fast, controlled cure allows thin built-up layers without long waits, a clear non-yellowing finish when done correctly, and fewer trapped bubbles because open time is short. It also means the light source is not optional equipment; it is the other half of the chemistry.
Wavelength Comes First
UV resins are formulated to cure in the 365 nm to 405 nm band. A 405 nm LED is efficient and works with most general-purpose resins. A 365 nm source penetrates deeper and cures pigmented or thicker sections more completely, though the LEDs are less efficient and cost more. Check the resin datasheet and match the lamp to its specified wavelength.
Why a Dedicated Lamp Beats Sunlight
Sunlight contains UV and will eventually cure UV resin, but intensity varies with weather, time of day, and season, so results are inconsistent. A dedicated lamp gives a fixed, repeatable dose, a timer for precise exposure, indoor operation at any hour, and output concentrated in the wavelengths the resin needs.
LED vs. Arc Sources
UV LED lamps are the common choice: long service life, low heat, stable output, instant on, and no bulb replacement. Arc lamps such as mercury vapor produce very high broadband intensity and suit high-volume lines, but they run hot, need warm-up, and consume replacement bulbs. For production flood curing, Incure L-Series LED flood lamps and F-Series arc flood lamps cover the range; the L-Series selection logic is in matching curing area to intensity and chamber.
If you are choosing between spot, flood, and chamber curing, Email Us with your part size and throughput target.
Power, Coverage, and Distance
Irradiance at the work surface, in milliwatts per square centimeter, matters more than raw wattage. A lamp’s rating only holds at a specific distance, and irradiance falls with the square of that distance, so doubling the gap cuts delivered energy to about a quarter. Fix the lamp-to-work distance in a stand or fixture.
Coverage area is the second factor. The lamp must hold its irradiance across the whole part, not just at the center, or edges undercure. For enclosed batch work, UV cure chambers are matched to lamp and part size.
Understanding Dose
Cure is driven by total dose, the product of irradiance and time, expressed in joules per square centimeter. A resin datasheet that calls for, say, 2 J/cm2 can reach it with a strong lamp in a short exposure or a weaker lamp over a longer one, within limits. Very low irradiance can stall the reaction because oxygen at the surface consumes radicals faster than they form, leaving a permanent tacky skin. Very high irradiance on a thick section can cure the surface so fast that it shrinks against an uncured interior and cracks. A radiometer that reads irradiance at the work surface lets you set a repeatable timed cycle rather than guessing.
Application Fields

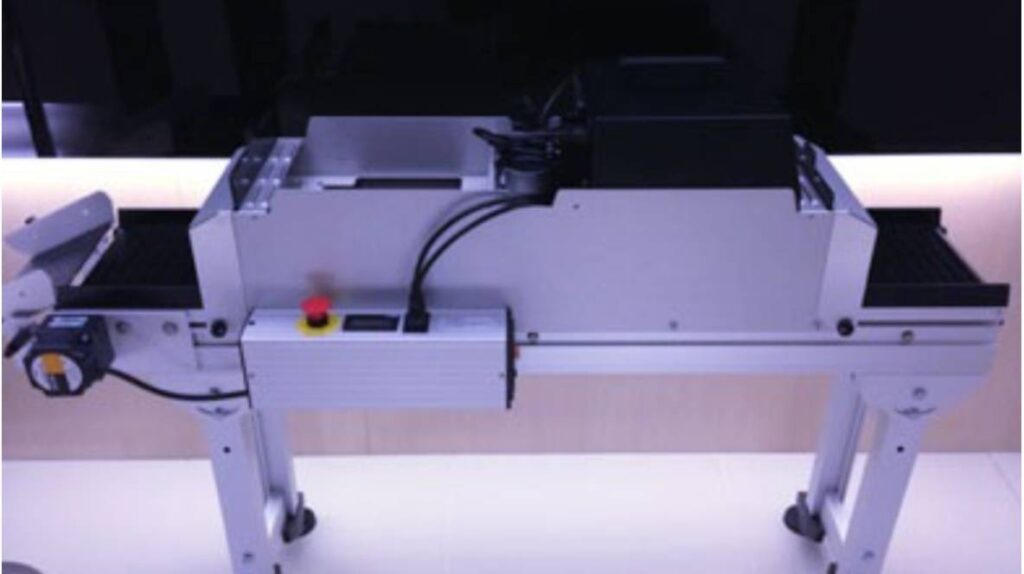

Beyond crafts and jewelry, UV resin and UV curing lamps are used in electronics assembly, optical bonding, protective coatings, and composite finishing. Each field has its own resin formulation and its own dose requirement, but the selection logic is the same: wavelength, irradiance, coverage, and controlled distance. Higher-volume operations move from a single overhead lamp to a conveyor or chamber so every part sees the same dose regardless of operator placement.
Controls Worth Having
A timer prevents both undercure and the yellowing that comes from prolonged over-exposure. Adjustable intensity helps tune the dose for different resin types and section thicknesses. Active cooling on higher-output heads keeps output stable and the part cooler, which reduces bubbling and cracking in exothermic pours.
Confirming the Cure
A properly cured surface is tack-free everywhere and resists a fingernail press in hidden areas. Soft spots mean the lamp is not covering that zone or the exposure was too short. For thick sections, cure in layers of a few millimeters, since the top resin absorbs UV before it reaches the bottom. When comparing UV resin against epoxy for a clear bond, see which is better for transparent bonding.
Summary
Choose the lamp by wavelength match first, then delivered irradiance and coverage at a fixed working distance, then controls. Incure supplies UV curing systems from spot lamps to production flood and chamber units. Contact Our Team to match one to your work.
