UV LED Focused Beam Conveyor Curing System — Incure CDM™ + M51
Incure CDM™ M51 is the highest-intensity configuration on the CDM™ platform — a UV LED focused beam conveyor curing system that concentrates UV into a narrow 5″×1″ strip beam instead of flooding the full belt width like the L64/L88 configurations, leaving adjacent components outside the 1-inch beam unexposed during inline cure. Delivered as a complete system — CDM™ conveyor plus M-Series™ M51 focused beam lamp head — it provides 6,150 mW/cm² at 365 nm, belt-speed dose control from 12,813 to 102,500 mJ/cm² UVA, PLC / RS-232 / foot-switch integration, and >20,000-hour LED service life.
Highest Intensity on the CDM™ Platform — 6,150 mW/cm² at 365 nm
The CDM™ + M51 delivers 6,150 mW/cm² at 365 nm — 3.2× the peak intensity of the flood configurations (L64, L88 at 1,900 mW/cm²). Where flood lamps spread their output over a wide area, the M51 concentrates 45 LEDs into a 5″×1″ strip, enabling fast cure of slow-reacting formulations and high-viscosity bond lines that require high irradiance to initiate the cure reaction at line speed.
5″×1″ Strip Beam Cures the Bond Line — Not Adjacent Components
Flood configurations on the CDM™ cure everything in their footprint — the bond line and the surrounding assembly. The M51 strip beam exposes only a 1-inch-wide path along the belt travel direction. Components outside that strip receive no UV, protecting heat-sensitive substrates, optical elements, and pre-assembled parts from unintended irradiation in the same conveyor pass.
25,630 mJ/cm² UVA at 6 ft/min — Fast Cure at Production Speed
At 6 ft/min belt speed, the M51 delivers 25,630 mJ/cm² UVA to the bond line — the highest energy-per-pass of any CDM™ LED configuration at the same belt speed. Belt speed is continuously adjustable from 1.5 to 12 ft/min, scaling dose from 102,500 mJ/cm² UVA at the slowest setting down to 12,813 mJ/cm² UVA at the fastest for throughput-optimised processes.

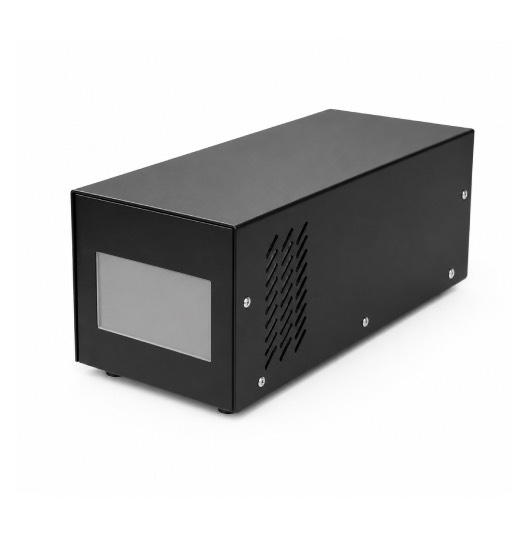

| Lamp Head | |
| Model | M51 |
| Beam Format | 5″ × 1″ (127 mm × 25 mm) strip |
| LED Array | 45 LEDs |
| Available Wavelengths | 365 nm · 385 nm · 395 nm · 405 nm (factory-configured at order) |
| Cooling | Advanced forced-air |
| Curing Performance | |
| Peak Intensity @ 365 nm, 2″ | 6,150 mW/cm² |
| Peak Intensity @ 385/395/405 nm, 2″ | 5,100 mW/cm² |
| Curing Energy @ 1.5 ft/min (slowest) | 102,500 mJ/cm² UVA · 85,000 mJ/cm² UVV |
| Curing Energy @ 6.0 ft/min (nominal) | 25,630 mJ/cm² UVA · 21,250 mJ/cm² UVV |
| Curing Energy @ 12.0 ft/min (fastest) | 12,813 mJ/cm² UVA · 10,625 mJ/cm² UVV |
| Light Source Useful Life | > 20,000 hours |
| Typical Intensity Loss Over Useful Life | ≤ 20% |
| Conveyor Platform | |
| Belt Material | 9″ Polypropylene — anti-static option available |
| Belt Speed | 1.5–12.0 ft/min (adjustable) |
| Maximum Part Width | 1 inch (25 mm) |
| Conveyor Curing Height | 0.5″–2.0″ (adjustable) |
| Mounting Stand | Optional |
| Control & Power | |
| External Control | PLC · RS-232 · Foot Switch |
| Operating Mode | Timer / Continuous (switchable) |
| Power Input | 100–240 V, 50/60 Hz, auto-ranging |
| Ordering | |
| P/N at 365 nm | CDM-1xM51-365 |
| P/N at 385 nm | CDM-1xM51-385 |
| P/N at 395 nm | CDM-1xM51-395 |
| P/N at 405 nm | CDM-1xM51-405 |
LED curing energy values are estimated based on measured irradiance profile, illuminated length in the belt-travel direction (5 inches), and belt speed. Actual dose may vary depending on working distance, beam profile, part height, reflectivity, and measurement method. The 1-inch maximum part width specification refers to the width of the cured zone — parts wider than 1 inch will receive UV only within the 1-inch beam footprint; areas outside the beam width are not cured in a single pass. UVV values are estimated at 385/395/405 nm wavelength configurations. Per-configuration wattage, machine dimensions, and weight available on request. Wavelength is factory-configured at time of order — contact Incure for wavelength selection guidance based on adhesive photoinitiator absorption peak.
