UV Conveyor Curing System — Incure CDM™

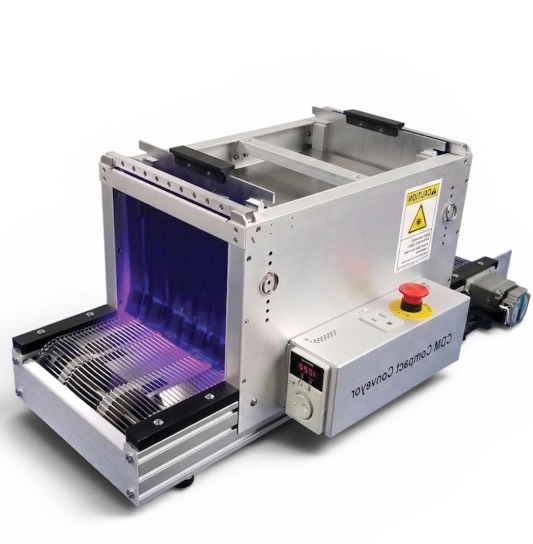

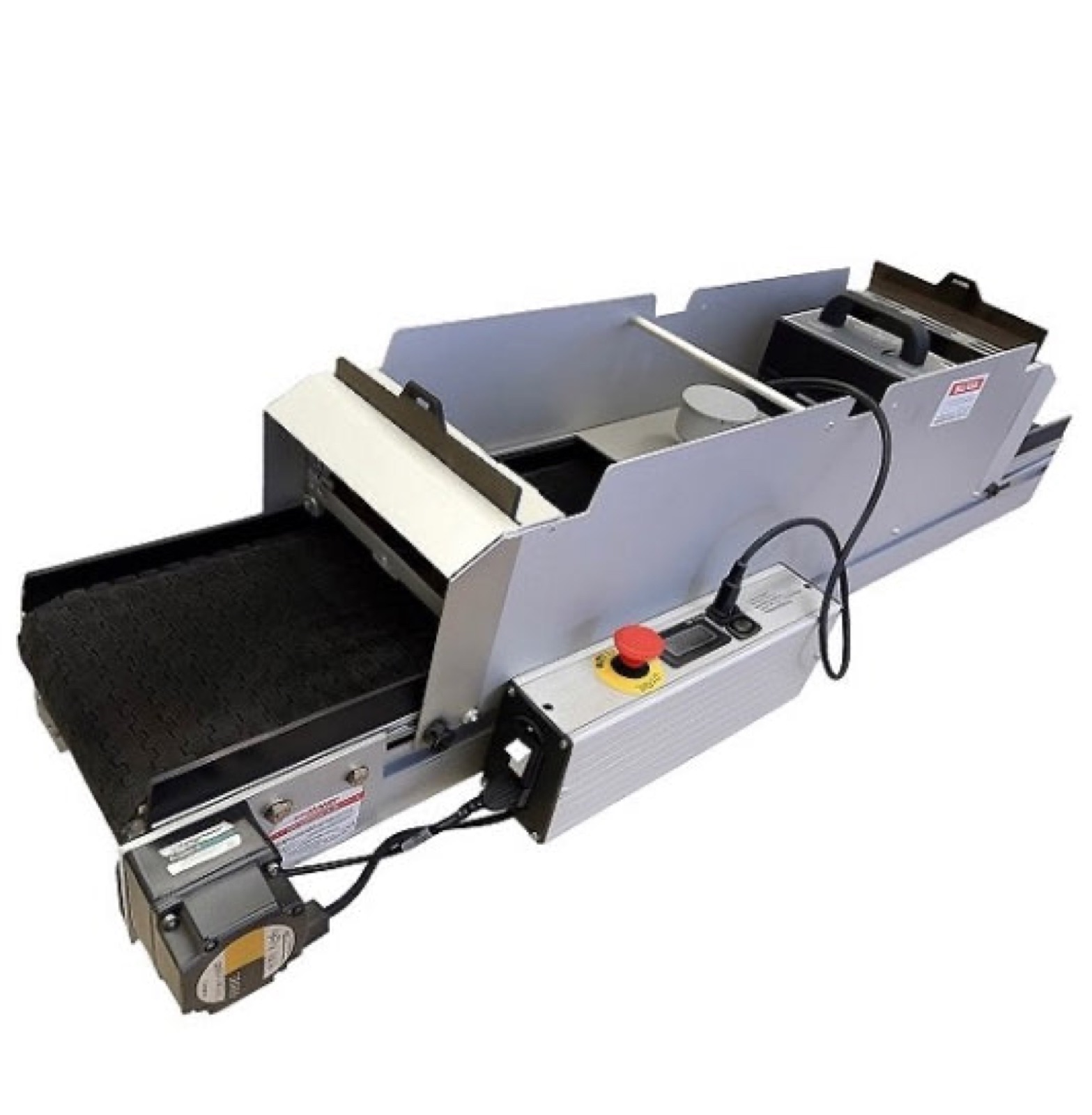

One CDM™ conveyor chassis, built to run interchangeable lamp heads — swap between UV LED flood, UV LED focused beam, or conventional mercury-arc flood without buying a second conveyor. Belt speed adjusts from 1.5 to 12.0 ft/min to dial in exact UV dose, and the high-intensity F400/F500 heads run on either the standard polypropylene belt or the stainless-steel CDM™ Compact belt.
Model Comparison
Specifications for the Incure CDM™ and CDM™ Compact UV conveyor platforms.
| Specification | UV LED Configurations (365–405 nm) | Conventional UV Flood — CDM™ | Conventional UV Flood — CDM™ or CDM™ Compact | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CDM™ + L64 | CDM™ + L88 | CDM™ + M51 | CDM™ + M62 | CDM™ + F100x2AC | CDM™ + F100x2A | CDM™ + F200x2AC | CDM™ + F200x2A | CDM™ / CDM™ Compact + F400x2AC | CDM™ / CDM™ Compact + F400x2A | CDM™ / CDM™ Compact + F500x2AC | CDM™ / CDM™ Compact + F500x2A | |
| Conveyor |
|
|
||||||||||
| Lamp Head |  |
 |
 |
 |
 |
 |
 |
 |
||||
| 365 nm Peak Intensity @ 2″ (mW/cm²) |
1,600 | 1,600 | 6,150 | 3,100 | 240 | 240 | 350 | 350 | 490 | 490 | 590 | 590 |
| 385/395/405 nm Peak Intensity @ 2″ (mW/cm²) |
1,900 | 1,900 | 5,100 | 2,600 | 220 | 220 | 350 | 350 | 470 | 470 | 560 | 560 |
| UVA (UVV) Peak Intensity @ 2.5″ (mW/cm²) |
— | — | — | — | 155 (140) | 155 (140) | 225 (215) | 225 (215) | 315 (300) | 315 (300) | 380 (360) | 380 (360) |
| Curing Energy (Belt Speed) | UVA (UVV) mJ/cm² | |||||||||||
| @ 1.5 ft/min (slowest) | 38,000 (32,000) |
50,670 (42,670) |
102,500 (85,000) |
62,000 (52,000) |
4,200 (4,000) |
8,400 (8,000) |
9,000 (8,600) |
18,000 (17,200) |
10,500 (9,500) |
21,000 (19,000) |
5,900 (5,500) |
11,800 (11,000) |
| @ 6.0 ft/min (nominal) | 9,500 (8,000) |
12,670 (10,670) |
25,630 (21,250) |
15,500 (13,000) |
1,050 (1,000) |
2,100 (2,000) |
2,250 (2,150) |
4,500 (4,300) |
2,630 (2,380) |
5,260 (4,760) |
1,480 (1,380) |
2,960 (2,760) |
| @ 12.0 ft/min (fastest) | 4,750 (4,000) |
6,340 (5,340) |
12,820 (10,630) |
7,750 (6,500) |
530 (500) |
1,060 (1,000) |
1,130 (1,080) |
2,260 (2,160) |
1,320 (1,190) |
2,640 (2,380) |
740 (690) |
1,480 (1,380) |
| Dynamic Uniformity @ 2″ on Conveyor |
0.89 | 0.89 | 0.87 | 0.87 | 0.82 | 0.82 | 0.82 | 0.82 | 0.82 | 0.82 | 0.81 | 0.81 |
| Static Uniformity @ 2″ on Conveyor |
0.80 | 0.80 | 0.79 | 0.79 | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 | 0.74 | 0.74 |
| Maximum Part Width (inches) | 4″ | 8″ | 1″ | 2″ | 8″ | 5″ | ||||||
| External Control Port | PLC / RS-232 / Foot Switch | Not Available | ||||||||||
| Belt Material Options & Dimensions | 9″ Polypropylene or Anti-static Belt | CDM™: 9″ Polypropylene or Compact: 9″ Stainless Wire Belt | ||||||||||
| Conveyor Curing Height (inches) | 0.5″ to 2″ | 0.5″ to 5″ | 3.0″ to 6.5″ | |||||||||
| Conveyor Belt Width (inches) | 9″ | |||||||||||
| Light Source Useful Life (hours) | LED > 20,000 hrs | Bulb > 1,000 hrs | ||||||||||
| Typical Intensity Loss Over Useful Life | ≤ 20% | ≤ 45% | ||||||||||
| Power Input | 100–240 V, 50/60 Hz, Auto-Ranging | |||||||||||
| Cooling System | Forced-Air Cooling | Forced-Air Cooling / Exhaust Ventilation | ||||||||||
| Mounting Stand | Optional | Not Available | ||||||||||
Note: LED curing energy is estimated based on measured irradiance profile, illuminated length in the belt-travel direction, and belt speed. Actual dose may vary depending on working distance, beam profile, part height, reflectivity, and measurement method. Uniformity values are typical measurements on the CDM™ conveyor, with ±5% measurement variation. F-series x2AC = 1 lamp assembly (1 UVA tube + 1 UVC tube), shipped as 1 unit per P/N. F-series x2A = 2 UVA lamp heads in series (UVA output only — no UVC). F400 and F500 configurations are available on both the CDM™ (polypropylene belt) and CDM™ Compact (stainless-steel wire belt) — specify platform when ordering. Mounting stand available as an optional accessory for F400 configurations; not available for F500 configurations. Per-configuration wattage, machine dimensions, and weight available on request.
Select Your CDM™ Configuration
Select the lamp head configuration that matches your curing intensity, part width, and automation requirements.
Each order is a complete system: CDM™ conveyor chassis + lamp head. All models are quote-only.
Inline UV Curing Across Every Industry

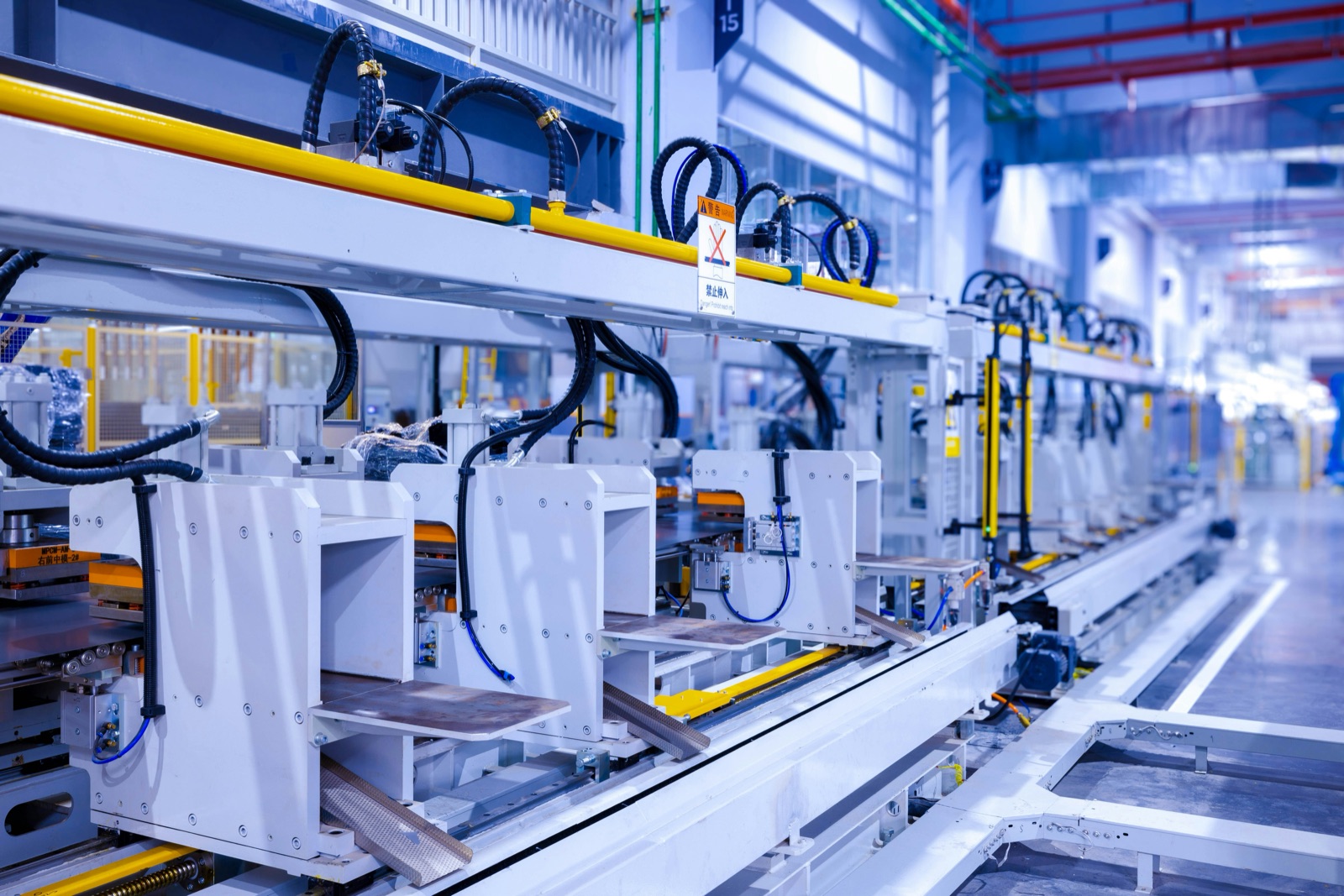

The Incure CDM™ UV conveyor handles continuous inline cure for adhesive bonding, conformal coating, UV varnish,
and encapsulant cure — from PCB panels to medical devices and structural assemblies.
Frequently Asked Questions
Common questions about the Incure CDM™ UV conveyor curing system.
-

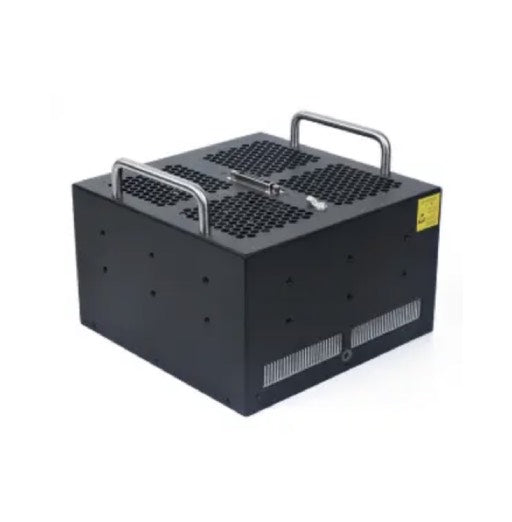

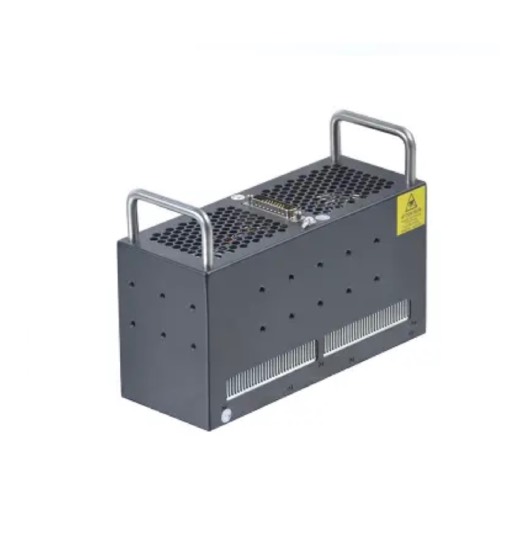

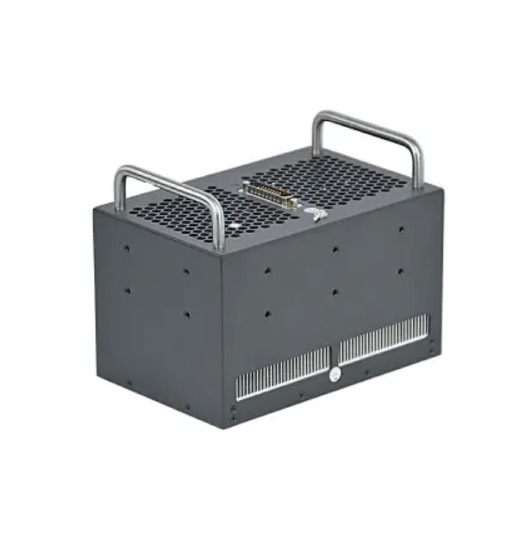

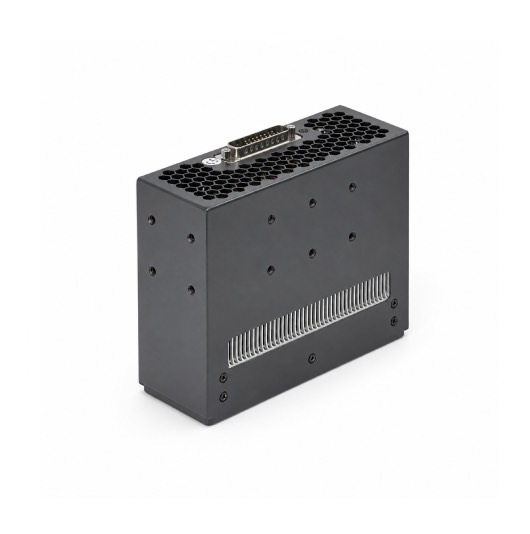

The Incure CDM™ is a UV conveyor curing system for inline UV adhesive and coating production. It accepts interchangeable lamp heads — UV LED flood (L64, L88), UV LED focused beam (M51, M62), or conventional UV flood in x2AC single-assembly or x2A dual-lamp configurations. F100 and F200 heads run on the CDM™; F400 and F500 heads are available on both the CDM™ (9-inch polypropylene belt) and CDM™ Compact (9-inch stainless-steel wire belt) platforms, matched to the process curing height and part width.
-

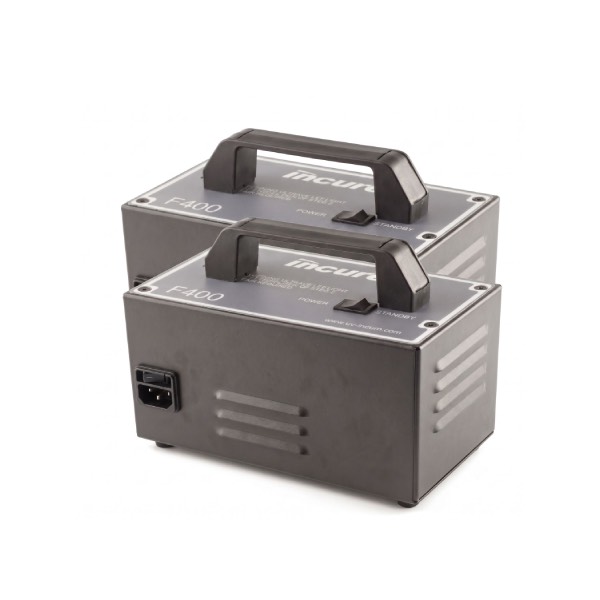

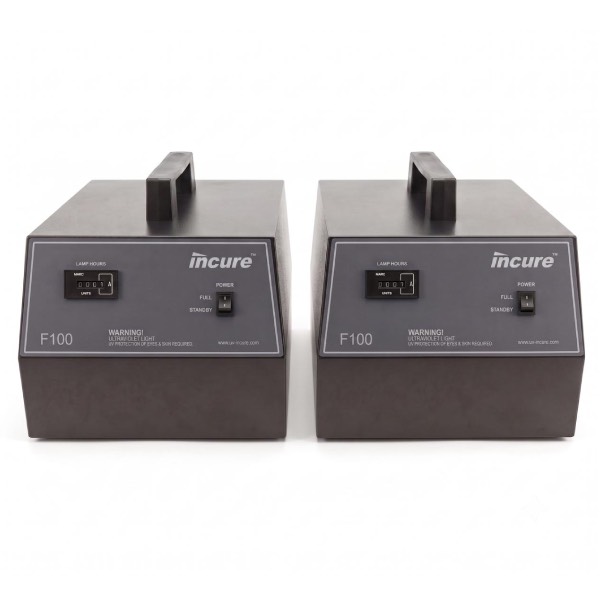

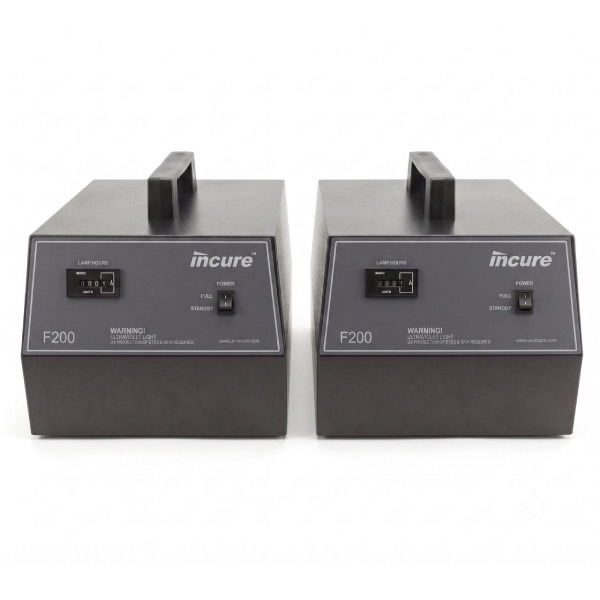

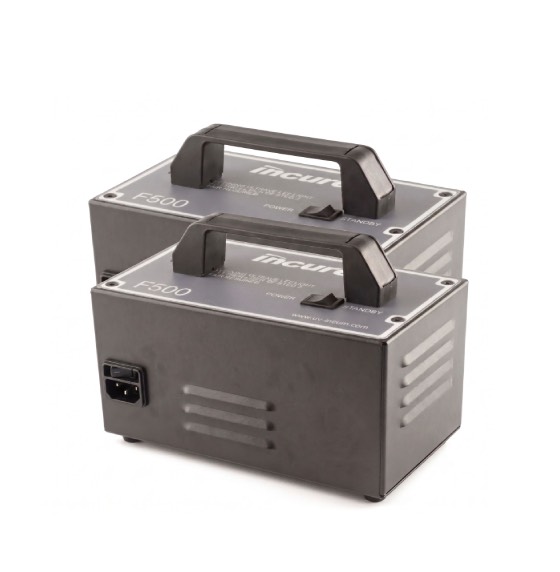

x2AC configurations contain one lamp assembly with 2 tubes — one UVA and one UVC — shipped as a single unit. They produce broadband UVA + UVC output, matching mercury-arc lamp spectrum. x2A configurations use two separate UVA-only lamp heads mounted in series on the belt; parts pass under both heads in a single conveyor pass, doubling the UV dose at the same belt speed. x2A is UVA output only — no UVC. If your adhesive process requires broadband UVA + UVC, specify x2AC.
-
The Incure CDM™ belt runs from 1.5 ft/min (slowest, highest UV dose) to 12.0 ft/min (fastest). The nominal operating speed is 6.0 ft/min. Adjusting belt speed directly controls the UV dose delivered — slower speeds provide higher mJ/cm² for thick or deeply pigmented adhesive layers. The three curing energy rows in the specification table show calculated dose at 1.5, 6.0, and 12.0 ft/min for all 12 configurations.
-
Yes — UV LED flood (L64, L88) and UV LED focused beam (M51, M62) configurations on the Incure CDM™ support PLC, RS-232, and foot-switch signal inputs, with switchable timer or continuous operating modes. The F-Series conventional UV flood configurations do not include an external control port and are suited for manual or standalone production workflows.
-
Maximum part width depends on the lamp head. L88, F100, and F200 configurations support up to 8 inches; L64 supports 4 inches; M62 supports 2 inches; M51 supports 1 inch for precision narrow-line curing. F400 and F500 configurations support 5 inches — on both the CDM™ (9-inch polypropylene belt) and the CDM™ Compact (9-inch stainless-steel wire belt). The curing height for F400 and F500 ranges from 3.0 to 6.5 inches on both the CDM™ and CDM™ Compact platforms.
-
UV LED configurations (L64, L88, M51, M62) are rated for more than 20,000 hours with ≤20% intensity decay over useful life. Conventional UV flood configurations — F100 and F200 on the CDM™, and F400 and F500 on the CDM™ or CDM™ Compact, in both x2AC and x2A — use mercury-arc bulbs rated for more than 1,000 hours with ≤45% intensity decay. LED configurations eliminate bulb replacement for the vast majority of production service life.
