M152 — UV Focused Beam Curing System, 15″ × 2″ Beam Area
Incure M152 is the largest model in the M-Series™ — a 15″ × 2″ beam area built from 270 LEDs delivering 3,100 mW/cm² at 365 nm across the full footprint. It adds 3 inches of length beyond the M122's 12-inch run, covering 15-inch bond seams, gasket perimeters, and panel-edge assemblies that exceed what any shorter M-Series™ model can reach in one exposure. Same forced-air platform, same auto-ranging power, same foot-switch/PLC/RS232 control architecture — scaled to the longest focused-beam bond line in the M-Series™.
25% More Length Than the M122 — Covers a Full 15-Inch Bond Seam in One Pass
The M152 extends the M-Series™ focused beam to 15 inches — the only M-Series™ model that covers a 15-inch bond line without indexing. The M122 stops at 12 inches; any bond interface longer than 12 inches requires either step-curing with an M122 or scaling to a flood lamp that covers a broad area without the M-Series™ beam concentration. The M152 is the answer when the seam is long, narrow, and 12 inches is not enough.
Full M-Series™ Intensity at the Longest Focused-Beam Scale
270 LEDs maintain 3,100 mW/cm² at 365 nm across the entire 15″ × 2″ footprint — the same irradiance as the M62 and M122. Scaling up to 15 inches does not dilute intensity: the M152 uses proportionally more LEDs to hold the M-Series™ output level at full working distance. Every millimeter of the 15-inch seam receives the same UV dose, producing a consistent cure from one end of the bond line to the other without the intensity drop seen at the edges of a flood source.
3,100 mW/cm² Across a 15″ × 2″ Area (270 LEDs at 365 nm)
270-LED array; peak irradiance at 2.0″ working distance: 3,100 mW/cm² at 365 nm; 2,600 mW/cm² at 385 nm, 395 nm, or 405 nm. Wavelength factory-configured at order (365 / 385 / 395 / 405 nm); auto-ranging power input (100–240 V, 50/60 Hz); foot-switch, PLC digital I/O, and RS232 control; advanced forced-air cooling; LED life rated at greater than 20,000 hours.
| UV Output | |
| Model | M152 |
| Beam Area | 15″ × 2″ (381 mm × 51 mm) |
| LED Array | 270 LEDs |
| Peak Intensity @ 2″ — 365 nm | 3,100 mW/cm² |
| Peak Intensity @ 2″ — 385/395/405 nm | 2,600 mW/cm² |
| Recommended Curing Distance | 1″ – 3″ |
| Control & Operation | |
| Available Wavelengths | 365 nm / 385 nm / 395 nm / 405 nm (factory-configured at order) |
| Operating Modes | Timer & Continuous (Front-Panel Switchable) |

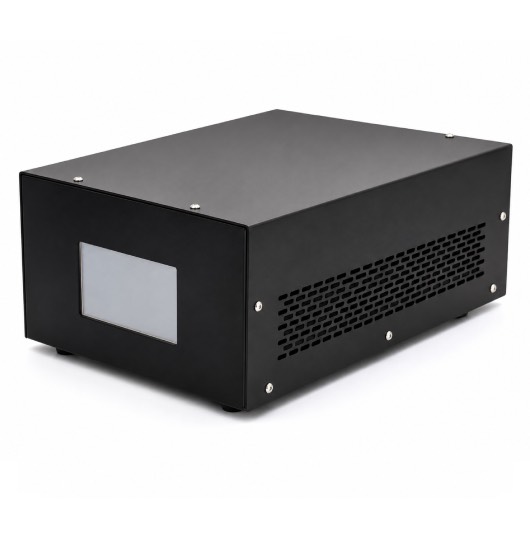

| Control Interface | LCD Front Panel; Foot-Switch Input; PLC Digital I/O; RS232 |
| Power & Cooling | |
| Power Input | 100 – 240 V, 50/60 Hz (auto-ranging) |
| Cooling | Advanced Forced-Air |
| Compatibility & Durability | |
| Chamber Compatible | Not Applicable |
| LED Lifespan | > 20,000 hours |
| Ordering | |
| P/N Format | M152-[Wavelength] |
| Wavelength Code | 365 / 385 / 395 / 405 |
| Example P/N | M152-365 |
Irradiance values measured at 100% output intensity at the specified working distance. Peak intensity at 365 nm exceeds 385/395/405 nm output for the M152 array — this is a characteristic of the LED die efficiency at 365 nm for M-Series™ focused-beam configurations. The M152 is the largest model in the M-Series™ range; applications requiring focused-beam curing over bond lines longer than 15 inches should be discussed with Incure to determine the appropriate configuration. Wavelength is factory-configured at order; specify 365 nm, 385 nm, 395 nm, or 405 nm when ordering. LED lifespan rated at greater than 20,000 operating hours under standard conditions; no recalibration or bulb replacement required during normal service life.
