Multi-Head UV LED Spot Curing — Incure L1344™ & L2688™
Run four or eight independently programmed UV LED heads from one compact controller. Up to 18,000 mW/cm² peak intensity, 365–470 nm, touchscreen control and full PLC integration for automated production lines.
One controller. Four or eight curing points.
Both models share the same controller, touchscreen and light heads. Choose the number of heads your process needs.

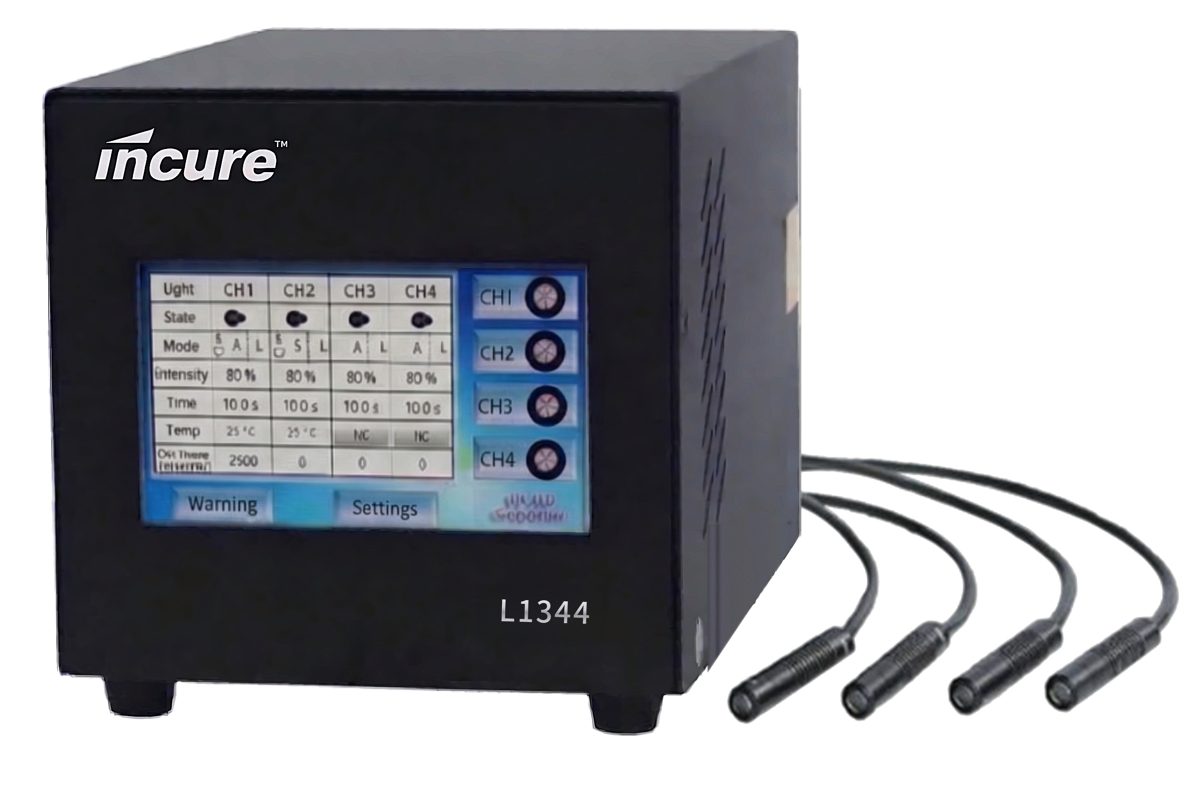

Four independently controlled UV LED heads for workstations, fixtures and compact automated cells.
- 4 heads, each with its own mode, intensity and time
- Up to 18,000 mW/cm² peak intensity
- Touchscreen with live status and temperature per head
- PLC inputs/outputs, RS-232 and foot switch control

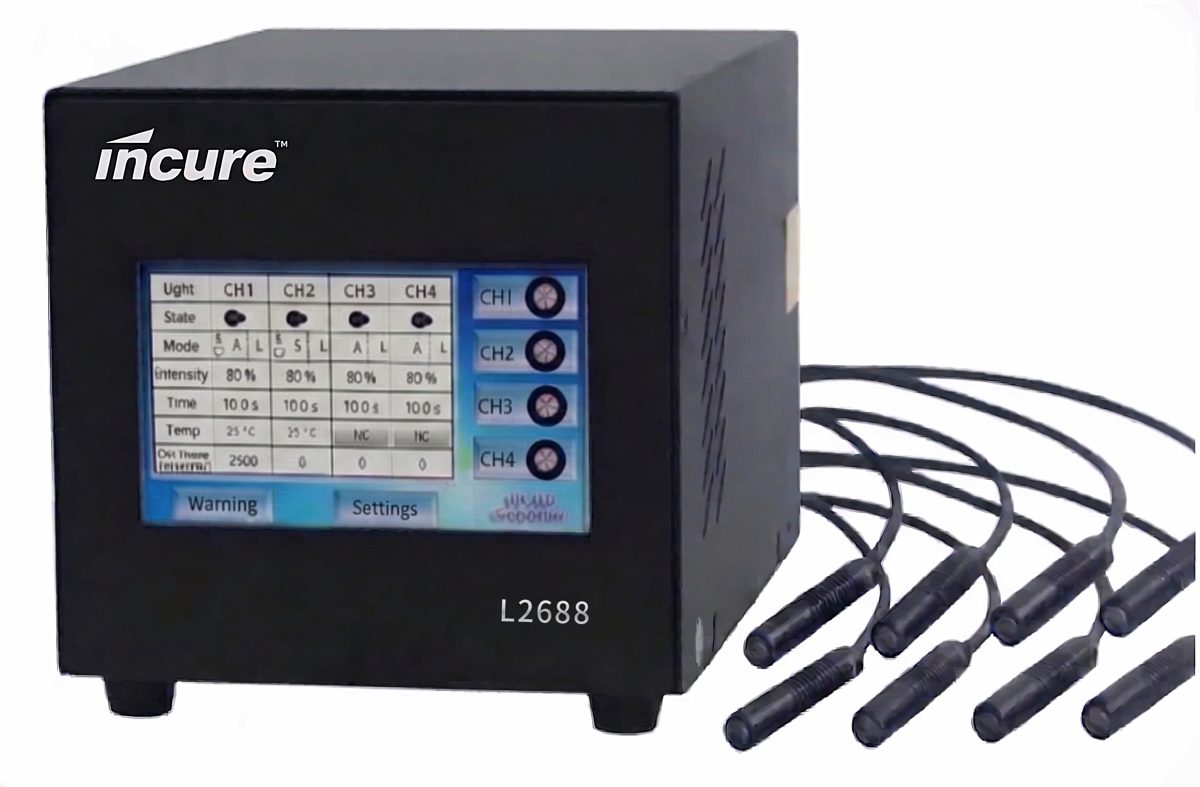

Eight independently controlled UV LED heads from one controller — built for high-throughput, fully automated lines.
- 8 heads, each with its own mode, intensity and time
- Up to 18,000 mW/cm² peak intensity
- Touchscreen with live status and temperature per head
- PLC inputs/outputs, RS-232 and foot switch control
Model Comparison
Full system specifications for the Incure L1344™ and L2688™ multi-head UV LED spot curing systems.
| L1344™ / L2688™ UV LED Multi-Head Spot Curing Systems | ||
|---|---|---|
| Configuration | L1344™ | L2688™ |
| Image |
|
|
| Type of Lamp | UV LED spot, multi-head | |
| Number of LED Heads | 4 | 8 |
| Head Control | Each head independently controlled and set to its own working mode | |
| Peak UV Intensity | Up to 18,000 mW/cm²** | |
| Peak Wavelengths | 365 / 385 / 395 / 405 / 450 / 470 nm (±10 nm) | |
| Intensity Control | 10–100% in 1% steps | |
| Exposure Timer | 0.1–999.9 s, or continuous | |
| Programs | Step and pulse modes · up to 99 stored programs | |
| Constant-Output Mode | Default below 80% output — irradiance held constant, unaffected by temperature | |
| Expected LED Life | >20,000 hours* · instant on/off, no warm-up or cool-down | |
| Display | Touchscreen — live temperature, status and time for every head; records LED working hours and temperature | |
| Protection | Fault alarm with automatic shut-down · key lock for settings | |
| PLC Inputs / Outputs | 4 head inputs · status outputs (start, stop, working, alarm) | 8 head inputs · status outputs (start, stop, working, alarm) |
| Serial Interface | RS-232 — program parameters, PC/PLC control, firmware updates | |
| Foot Switch / Sensor | One switch triggers 1–4 heads | One switch triggers 1–8 heads |
| Power Supply | Built in — no separate power supply required | |
| Housing | All-aluminium enclosed housing, suitable for clean rooms | |
| Head Cable | 3 m / 5 m / 10 m · rated >1,000,000 bends at R30 mm | |
| Controller Dimensions | 185 × 140 × 130 mm (L × W × H) | |
| Controller Weight | 1,500 g | |
* LED life is estimated for a specific operating environment and conditions of use. ** Measured with a 2 mm focusing lens at 8 mm working distance, 365 nm, 100% output.
Two heads, one connector

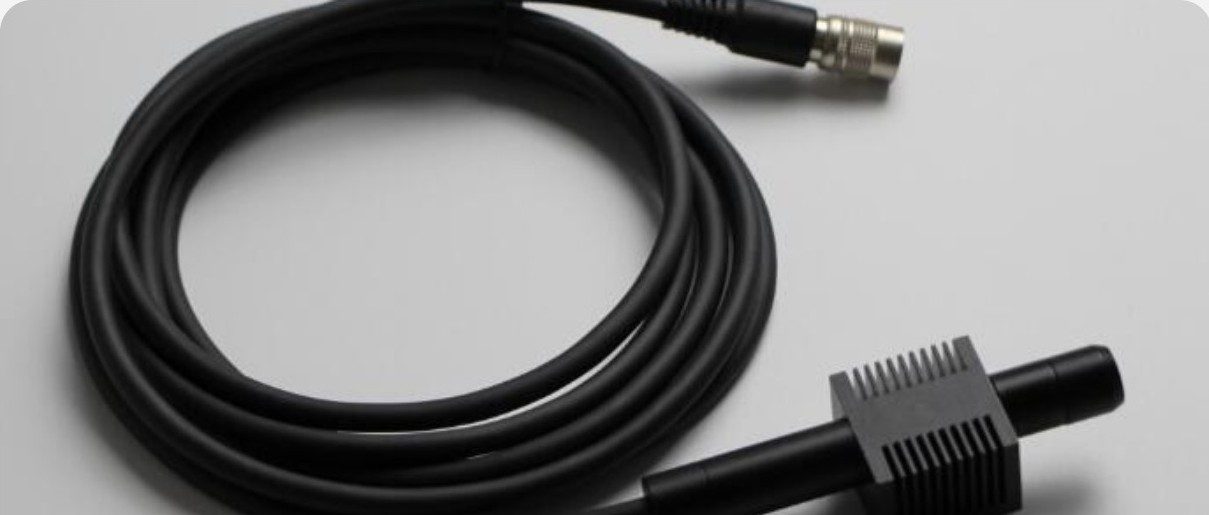

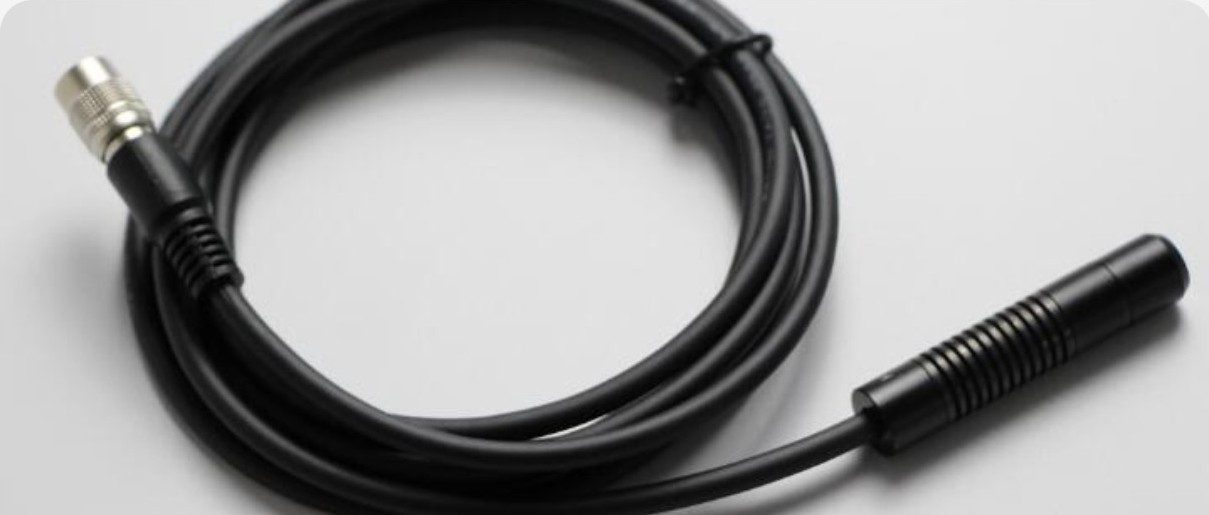

Quartz LEDs, aviation-grade heat sinks and quartz optical lenses. Mix head types on the same controller.
Match the spot to the bond line

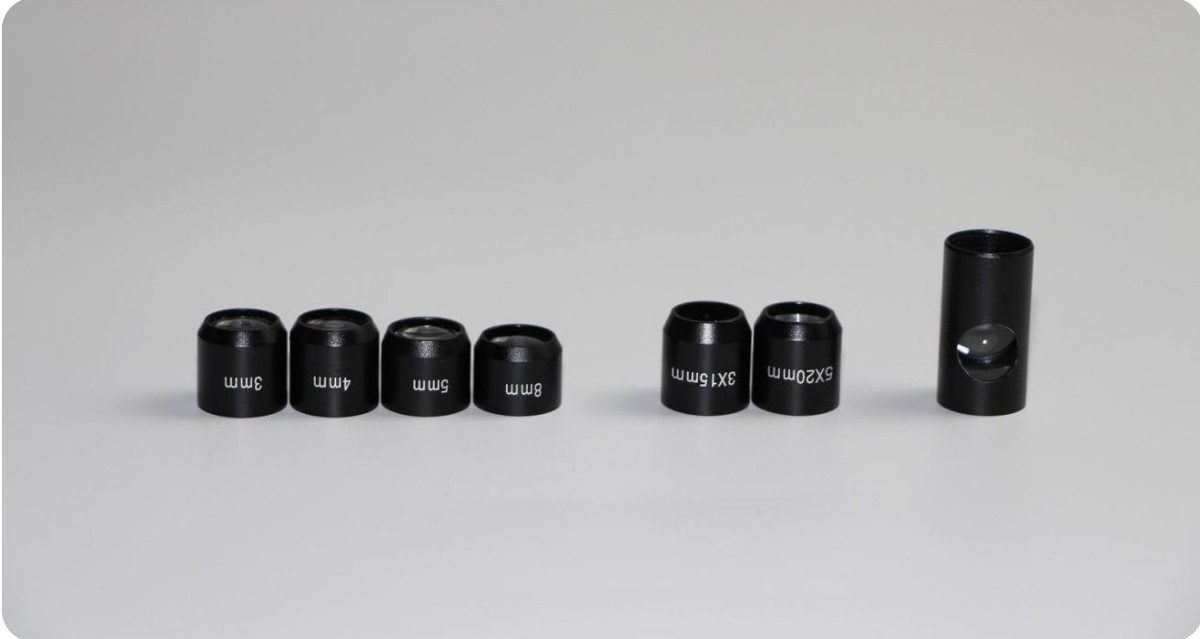

14 standard spot lenses from 2 mm to 20 mm, including variable-spot and side-view options. Custom lenses and fibre optics on request.
N-type lenses · 365 nm
| Part No. | Spot Size | Working Distance | Optical Power |
|---|---|---|---|
| L2688-L02 | 2 mm | 8 mm | 18 W/cm² |
| L2688-L03 | 3 mm | 10 mm | 13 W/cm² |
| L2688-L04 | 4 mm | 14 mm | 8.5 W/cm² |
| L2688-L05 | 5 mm | 16 mm | 7.5 W/cm² |
| L2688-L06 | 6 mm | 17 mm | 6 W/cm² |
| L2688-L08 | 8 mm | 27 mm | 2.5 W/cm² |
| L2688-L10 | 10 mm | 25 mm | 1.8 W/cm² |
| L2688-L12 | 12 mm | 25 mm | 1 W/cm² |
| L2688-L15 | 15 mm | 38 mm | 0.6 W/cm² |
| L2688-L15V | 3–15 mm (variable) | 11 mm | 1.7 W/cm² |
| L2688-L20V | 5–20 mm (variable) | 17 mm | 0.9 W/cm² |
| L2688-L06SV | 6 mm (side view) | 5 mm | 4 W/cm² |
| L2688-L08SV | 8 mm (side view) | 14 mm | 2 W/cm² |
S-type lenses · 365 / 385 / 395 / 405 nm
| Part No. | Spot Size | Working Distance | Optical Power |
|---|---|---|---|
| L2688-L03S | 3 mm | 8 mm | 11 W/cm² |
| L2688-L04S | 4 mm | 7 mm | 10 W/cm² |
| L2688-L05S | 5 mm | 10 mm | 6.5 W/cm² |
| L2688-L06S | 6 mm | 12 mm | 5.5 W/cm² |
| L2688-L08S | 8 mm | 19 mm | 3.5 W/cm² |
| L2688-L10S | 10 mm | 25 mm | 2.2 W/cm² |
| L2688-L12S | 12 mm | 22 mm | 1.8 W/cm² |
| L2688-L15S | 15 mm | 39 mm | 0.2 W/cm² |
| L2688-L08SVS | 8 mm (side view) | 10 mm | 0.9 W/cm² |
Optical power measured at the stated working distance at 100% output. Fibre-optic heads: diameter and length can be customised.
Configure & Order
Wavelength, head type, lens and cable length are confirmed at order — contact us if you need a specific combination.
Built for Multi-Point Industrial Curing
Independent heads, programmable per-head exposure and PLC control make the L1344™ and L2688™ suitable wherever several bond points must cure together.
Why UV LED over mercury lamps
Frequently Asked Questions
Common questions about the Incure L1344™ and L2688™ multi-head UV LED spot curing systems.
-
The number of LED heads. The L1344™ drives four heads and the L2688™ drives eight. Both use the same controller, touchscreen, heads and lenses.
-
Yes. Every head has its own mode, intensity (10–100% in 1% steps) and exposure time (0.1–999.9 s or continuous). Step and pulse modes support up to 99 stored programs.
-
365, 385, 395, 405, 450 and 470 nm (±10 nm). The wavelength is chosen at order.
-
Each head has a PLC input, and status outputs report start, stop, working and alarm. RS-232 lets a PC or PLC set parameters and transfer programs. A foot switch or sensor can trigger any group of heads.
-
The Compact Head suits most timed exposures. For long or continuous exposure, choose the Fan-Cooled Head.
-
Yes. The controller has an all-aluminium enclosed housing suitable for clean workshops.
